Alarm.com New Pro Series CSVR with 16 Built-In PoE Ports

IMPORTANT NOTE: Alarm.com Products are Not Standalone Devices. They require a service subscription from an Authorized Alarm.com Dealer in order to work on a network.

Stream Video Recorder

Commercial Video is a powerful, easy-to-use solution for commercial properties that integrates with the Alarm.com for Business platform. As part of the platform, recorded video is automatically tagged with important events, like a door being accessed or an alarm activation. This allows you to quickly jump to footage of the event using the Alarm.com mobile app or website—anytime, anywhere.

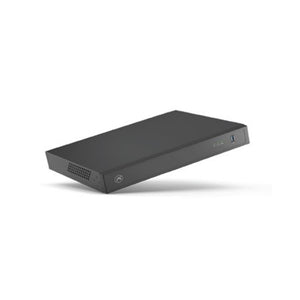

The CSVR2116P Pro Series Commercial SVR is a cloudmanaged storage solution for 24/7 local video recording. Continuously record up to 16 camera streams with an aggregate recording throughput of 70 Mbps.

The CSVR2116P offers a built-in PoE switch to power and connect Alarm.com PoE and Third Party cameras.

Specifications

Video input: 16 channels, 70 Mbps total

Local display capabilities: Live View, Playback, Clip Export, Archive Export

Local display output: 1x HDMI 1x VGA (Full HD)

Local clip export: 1x USB 3.0 (front), 2x USB 2.0 (rear)

Recommended cameras: VC827P, VC847PF, VC728PF, VC838PF, V523, VC727P (via ethernet) Supported ONVIF and VAPIX cameras

Ethernet connectivity: 1x Client RJ45 10/100/1000 Mbps, 16x Camera PoE 802.3af RJ45 10/100 Mbps

Internal storage: Up to 2x 3.5” HDD, SATA 6 Gb/s, 12TB each

Dimensions (WxDxH): 14.4 x 12.6 x 1.7” (36.6 x 32.0 x 4.6 cm)

Operating temperature: 32°F - 104°F (0°C - 40°C)

PoE Power Budget: 200W

Max power consumption: 280W

Max weight: 8.8lb (4.0 kg)

Compliance: FCC Class A, IC, CE, UL Listed

Requirements: Power: Standard electrical outlet Network: Ethernet connection to broadband Internet
